Trap Class Reference

#include <trap.hpp>

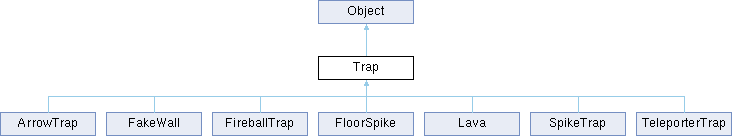

Inheritance diagram for Trap:

Public Member Functions
	Trap (ObjectType type, bool movable, glm::vec3 corner, Collider collider, ModelType model, glm::vec3 dimensions=glm::vec3(1.0f))
virtual bool	shouldTrigger (ServerGameState &state)=0
virtual void	trigger (ServerGameState &state)
virtual bool	shouldReset (ServerGameState &state)=0
virtual void	reset (ServerGameState &state)
SharedObject	toShared () override
	Generates a SharedObject representation of this object. More...
void	setIsDMTrap (bool is_dm_trap)
void	setIsDMTrapHover (bool is_dm_trap_hover)
void	setExpiration (std::chrono::time_point< std::chrono::system_clock > expiration)
bool	getIsDMTrap ()
std::chrono::time_point< std::chrono::system_clock >	getExpiration ()
Public Member Functions inherited from Object
	Object (ObjectType type, Physics physics, ModelType modelType)
virtual	~Object ()
void	setModel (ModelType type)
	Sets this Object's model and initializes its dimensions to the given model's default dimensions. More...
virtual SharedObject	toShared ()
	Generates a SharedObject representation of this object. More...
virtual void	doCollision (Object *other, ServerGameState &state)
	Code to run when this object collides with another. More...
std::string	to_string (unsigned int tab_offset)
std::string	to_string ()

Protected Attributes
bool	is_dm_trap
std::chrono::time_point< std::chrono::system_clock >	expiration
SharedTrapInfo	info

Additional Inherited Members
Data Fields inherited from Object
EntityID	globalID {}
	Unique object ID (used to index into the ServerGameState::objects vector) More...
SpecificID	typeID {}
	Type-specific Object ID (used to index into the type-specific objects vector in ServerGameState) More...
MovableID	movableID {}
	Movable ID (used to index into the movable objects vector in ServerGameState) More...
ObjectType	type
	Identifies this object's type (derived class) More...
Physics	physics
	Object's Physics-related properties. More...
ModelType	modelType
	Object's render model type (specifies this Object's render model to the client) More...
AnimState	animState
	Object's animation state and current action. For non-animated objects, this defaults as AnimState::IdleAnim. More...
bool	is_sprinting
	used to determine if the player is sprinting for animation purposes More...
std::vector< glm::ivec2 >	gridCellPositions
	Vector of (x, y) positions of GridCells currently occupied by this object. More...
float	distance_moved
	Distance moved, for use in deciding when to play footsteps IMPORTANT: reset every time a footstep sound is performed for objects that play foosteps. More...
Static Public Attributes inherited from Object
static std::unordered_map< ModelType, glm::vec3 >	models
	Maps from ModelType to a model's dimensions as read from the model files. (At present, these values are hard-coded in object.cpp) More...

Constructor & Destructor Documentation

Trap()

Trap::Trap	(	ObjectType	type,
		bool	movable,
		glm::vec3	corner,
		Collider	collider,
		ModelType	model,
		glm::vec3	dimensions = glm::vec3(1.0f)
	)

Parameters

type	What type of trap this is
movable	Whether or not the trap should be initialized being affected by gravity/velocity
corner	Corner position of the trap
collider	collider type for the trap
model	What model should be used to render the trap
dimensions	Dimensions to use for the trap, if it won't be overridden by the model info

Member Function Documentation

getExpiration()

std::chrono::time_point< std::chrono::system_clock > Trap::getExpiration

(

)

Gets the expiration time of this trap

Returns

the expiration time of this trap

getIsDMTrap()

bool Trap::getIsDMTrap

(

)

Gets if this trap is a DM trap or not

Returns

True if the trap is a DM trap and false otherwise

reset()

void Trap::reset ( ServerGameState &  state )

virtual

Logic to reset the trap

At the highest level, this version just sets the triggered flag to false. Derivations of this should do additional resetting logic, and potentially call this Base class version as well to reset the common logic for all traps (currently just the triggered variable)

Parameters

state

GameState in case the trap needs to use the state for that

Reimplemented in ArrowTrap, FireballTrap, SpikeTrap, and TeleporterTrap.

setExpiration()

void Trap::setExpiration

(

std::chrono::time_point< std::chrono::system_clock >

expiration

)

Set the expiration of this trap

Parameters

expiration

time

setIsDMTrap()

void Trap::setIsDMTrap

(

bool

is_dm_trap

)

Set the is_dm_trap field

Parameters

boolean

for if this trap is a DM trap or not

setIsDMTrapHover()

void Trap::setIsDMTrapHover

(

bool

is_dm_trap_hover

)

Set the SharedTrapInfo info dm_hover field

Parameters

boolean

for if this trap is a a DM hover or not

shouldReset()

virtual bool Trap::shouldReset ( ServerGameState &  state )

pure virtual

Resets the trap

Parameters

state

GameState, in case you need that to determine if the trap should reset

Returns

True if the trap should reset, false otherwise

Implemented in ArrowTrap, FakeWall, FireballTrap, FloorSpike, Lava, SpikeTrap, and TeleporterTrap.

shouldTrigger()

virtual bool Trap::shouldTrigger ( ServerGameState &  state )

pure virtual

Determines if the trap should be triggered

Parameters

state

GameState, in case you need that to determine if the trap should trigger

Returns

True if the trap should trigger, false otherwise

Implemented in ArrowTrap, FakeWall, FireballTrap, FloorSpike, Lava, SpikeTrap, and TeleporterTrap.

toShared()

SharedObject Trap::toShared ( )

overridevirtual

Generates a SharedObject representation of this object.

Returns

A SharedObject representation of this object.

Reimplemented from Object.

trigger()

void Trap::trigger ( ServerGameState &  state )

virtual

Activates the trap

At the highest level, this just sets the triggered variable to true. Subclass versions of this will also probably want to call this function to set the triggered variable, in addition to any other common flags we add in later.

Parameters

state

State in case triggering the trap needs to affect the gamestate

Reimplemented in ArrowTrap, FireballTrap, SpikeTrap, and TeleporterTrap.

Field Documentation

expiration

std::chrono::time_point<std::chrono::system_clock> Trap::expiration

protected

the expiration time of this trap

info

SharedTrapInfo Trap::info

protected

is_dm_trap

bool Trap::is_dm_trap

protected

is this trap a DM trap?

---

The documentation for this class was generated from the following files:

• include/server/game/trap.hpp
• src/server/game/trap.cpp
